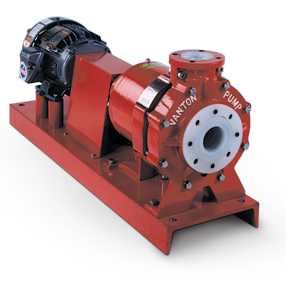

CHEM-GARD® CGM Horizontal Centrifugal Pumps

Magnetically Driven, Sealless, Centrifugal Thermoplastic Pumps
meet ANSI B73.1 standards

  • Flows to 400 gpm (91 m3/h)
  • Heads to 180 ft (55 m)
  • Temps to 225°F (107°C)
  • Construction: PP, PVDF








Vanton CHEM-GARD® CGM magnetically driven end suction process pumps are sealless, single stage, volute type centrifugals that conform to Hydraulic Institute Standards. All fluid contact parts are molded of solid polypropylene (PP) or polyvinylidene fluoride (PVDF), which are chemically inert and abrasion resistant. As a result CGM pumps eliminate corrosion associated with metal pumps, wicking and contamination associated with fiberglass pumps, and porosity/delamination associated with plastic lined metal pumps.

1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Model Number

Pump Size

ANSI Designation

Suction Size

Discharge Size

Dimension CP

Dimension D

Dimension X

Dimension Y

Dimension HA

Dimension HT

Dimension HB

Diagram

N/A 1.5 x 1 x 6 in N/A AA N/A 1-1/2 in N/A 1 in N/A 17-1/2 in N/A 5-1/4 in N/A 6-1/2 in N/A 4 in N/A 12 in N/A 3-1/2 in N/A 39 in

N/A 3 x 2 x 6 in N/A A-10 N/A 3 in N/A 2 in N/A 23-1/2 in N/A 8-1/4 in N/A 8-1/4 in N/A 4 in N/A 15 in N/A 3-1/2 in N/A 52 in

N/A 3 x 2 x 8 in N/A A-60 N/A 3 in N/A 2 in N/A 23-1/2 in N/A 8-1/4 in N/A 9-1/2 in N/A 4 in N/A 15 in N/A 3-1/2 in N/A 52 in

N/A 4 x 3 x 8 in N/A A-70 N/A 4 in N/A 3 in N/A 23-1/2 in N/A 8-1/4 in N/A 11 in N/A 4 in N/A 18 in N/A 3-1/2 in N/A 58 in

N/A 4 x 3 x 9 in N/A A-70 N/A 4 in N/A 3 in N/A 23-1/2 in N/A 8-1/4 in N/A 11 in N/A 4 in N/A 18 in N/A 3-1/2 in N/A 58 in

N/A 4 x 3 x 10 in N/A A-70 N/A 4 in N/A 3 in N/A 23-1/2 in N/A 8-1/4 in N/A 11 in N/A 4 in N/A 18 in N/A 3-1/2 in N/A 58 in
