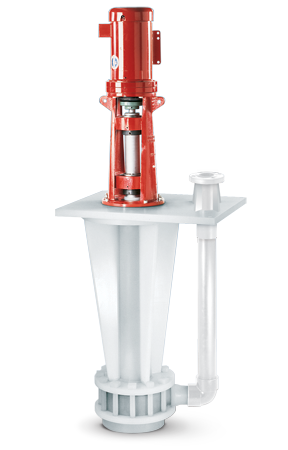

• SUMP-GARD® SGK Vertical Centrifugal Pumps
  • SUMP-GARD® SGK Vertical Centrifugal Pumps - 2
The cantilevered, large diameter shaft design of the SGK pump eliminates the need for immersed bearings, providing indefinite dry-run capability and dependable operation. As a result, Vanton SGK cantilevered sump pumps are specified for applications in which brief or long-term stoppage of fluid flow may occur, as well as for applications in which regulations prohibit draining tanks from the bottom.
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Model Number

Item Name

Suction Size

Dimension C

Dimension D

Dimension X

N/A SUMP-GARD® SGK 1 x 1 Inch (in) Size and 9 Inch (in) Dimension B Vertical Centrifugal Pump N/A 1 in25.4 mm N/A 7-1/2 in190.50 mm N/A 22-5/8 in574.68 mm N/A 18 to 48 in457.20 to 1219.20 mm
N/A SUMP-GARD® SGK 1-1/2 x 1-1/2 Inch (in) Size and 11-1/4 Inch (in) Dimension B Vertical Centrifugal Pump N/A 1-1/2 in38.1 mm N/A 8-13/16 in223.74 mm N/A 22-5/8 in574.68 mm N/A 18 to 48 in457.20 to 1219.20 mm
N/A SUMP-GARD® SGK 2 x 2 Inch (in) Size and 11-1/4 Inch (in) Dimension B Vertical Centrifugal Pump N/A 2 in50.8 mm N/A 9-5/8 in244.48 mm N/A 22-5/8 in574.68 mm N/A 18 to 48 in457.20 to 1219.20 mm
N/A SUMP-GARD® SGK 2 x 2 Inch (in) Size and 11-1/4 Inch (in) Dimension B Vertical Centrifugal Pump N/A 2 in50.8 mm N/A 9-5/8 in244.48 mm N/A 22-5/8 in574.68 mm N/A 18 to 48 in457.20 to 1219.20 mm
N/A SUMP-GARD® SGK 3 x 2 Inch (in) Size and 12-3/8 Inch (in) Dimension B Vertical Centrifugal Pump N/A 3 in76.2 mm N/A 9-5/8 in244.48 mm N/A 22-5/8 in574.68 mm N/A 18 to 48 in457.20 to 1219.20 mm
N/A SUMP-GARD® SGK 3 x 2 Inch (in) Size and 15 Inch (in) Dimension B Vertical Centrifugal Pump N/A 3 in76.2 mm N/A 13-1/4 in336.55 mm N/A 22-5/8 in574.68 mm N/A 18 to 48 in457.20 to 1219.20 mm
N/A SUMP-GARD® SGK 4 x 3 Inch (in) Size and 15 Inch (in) Dimension B Vertical Centrifugal Pump N/A 4 in101.6 mm N/A 13-1/4 in336.55 mm N/A 22-5/8 in574.68 mm N/A 18 to 48 in457.20 to 1219.20 mm
N/A SUMP-GARD® SGK 4 x 3 Inch (in) Size and 15-1/2 Inch (in) Dimension B Vertical Centrifugal Pump N/A 4 in101.6 mm N/A 13-1/4 in336.55 mm N/A 22-5/8 in574.68 mm N/A 18 to 48 in457.20 to 1219.20 mm
N/A SUMP-GARD® SGK 6 x 4 Inch (in) Size and 22-3/4 Inch (in) Dimension B Vertical Centrifugal Pump N/A 6 in152.4 mm N/A 17-1/8 in434.98 mm N/A 22-5/8 in574.68 mm N/A 18 to 48 in457.20 to 1219.20 mm
