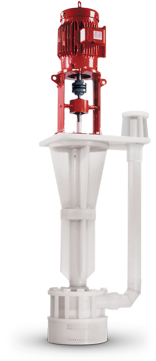

Sump-Gard pump

The industry standard for dependable thermoplastic vertical pump design

  • Flows to 900 gpm (204 m3/h)
  • Heads to 180 ft (55 m)
  • Lengths to 20 ft (6.1 m)
  • Temps to 275°F (135°C)
  • Construction: PP, PVC, CPVC or PVDF








Vanton vertical thermoplastic sump pumps are engineered for dependable handling of corrosive, abrasive, hazardous and toxic process fluids and plant effluents over broad temperature and pH ranges. These rugged pumps are widely used for processing, environmental controls and water/wastewater treatment throughout the chemical, textile, pharmaceutical, pulp and paper, semiconductor, electroplating and other manufacturing industries, as well as in utilities and municipal water treatment facilities.

1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Model Number

SIZE
SUCTION / DISCHARGE

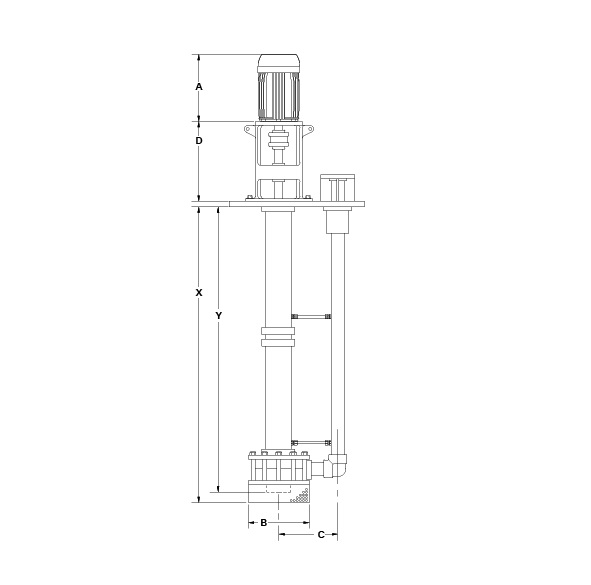

Dimension A

Dimension B

Dimension C

Dimension D

Y/X

Diagram

N/A 1 X 1 in
25.4 X 25.4 mm 		N/A Varies with Motor Size N/A 9 in228.60 mm N/A 7-1/2 in190.50 mm N/A 10-1/2 to 12-3/8 in266.70 to 314.33 mm N/A 12 to 240 in
304.80 to 6096.00 mm

N/A 1 1/2 X 1 1/2 in
38.1 X 38.1 mm 		N/A Varies with Motor Size N/A 11-1/4 in285.75 mm N/A 8-13/16 in223.74 mm N/A 10-1/2 to 12-3/8 in266.70 to 314.33 mm N/A 12 to 240 in
304.80 to 6096.00 mm

N/A 2 X 2 in
50.8 X 50.8 mm 		N/A Varies with Motor Size N/A 11-1/4 in285.75 mm N/A 9-5/8 in244.48 mm N/A 10-1/2 to 12-3/8 in266.70 to 314.33 mm N/A 12 to 240 in
304.80 to 6096.00 mm

N/A 2 X 2 in
50.8 X 50.8 mm 		N/A Varies with Motor Size N/A 11-1/4 in285.75 mm N/A 9-5/8 in244.48 mm N/A 10-1/2 to 12-3/8 in266.70 to 314.33 mm N/A 12 to 240 in
304.80 to 6096.00 mm

N/A 3 X 2 in
76.2 X 50.8 mm 		N/A Varies with Motor Size N/A 12-3/8 in314.33 mm N/A 9-5/8 in244.48 mm N/A 10-1/2 to 12-3/8 in266.70 to 314.33 mm N/A 12 to 240 in
304.80 to 6096.00 mm

N/A 3 X 2 in
76.2 X 50.8 mm 		N/A Varies with Motor Size N/A 15 in381.00 mm N/A 13-1/4 in336.55 mm N/A 18-1/16 in458.79 mm N/A 12 to 240 in
304.80 to 6096.00 mm

N/A 4 X 3 in
101.6 X 76.2 mm 		N/A Varies with Motor Size N/A 15 in381.00 mm N/A 13-1/4 in336.55 mm N/A 18-1/16 in458.79 mm N/A 12 to 240 in
304.80 to 6096.00 mm

N/A 4 X 3 in
101.6 X 76.2 mm 		N/A Varies with Motor Size N/A 15-1/2 in393.70 mm N/A 13-1/4 in336.55 mm N/A 18-1/16 in458.79 mm N/A 12 to 240 in
304.80 to 6096.00 mm

N/A 6 X 4 in
152.4 X 101.6 mm 		N/A Varies with Motor Size N/A 22-3/4 in577.85 mm N/A 17-1/8 in434.98 mm N/A 22 in558.80 mm N/A 12 to 240 in
304.80 to 6096.00 mm
