Close-Coupled Mag-Drive CHEM-GARD® CGMC Horizontal Centrifugal Pumps
CHEM-GARD® Horizontal Centrifugal Pumps

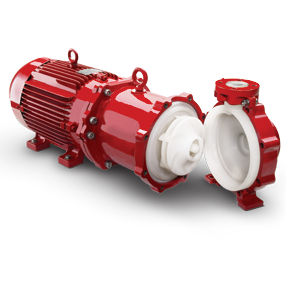

Thermoplastic Close-Coupled, Magnetically Driven, Sealless Centrifugal Pumps
Corrosion-free and contamination-free handling of acids, caustics and ultra-pure liquids with zero emissions in a compact size
- Flows to 400 gpm (91 m3/h)
- Heads to 180 ft (55 m)
- Temps to 225°F (107°C)
- Construction: PP, PVDF
Vanton Chem-Gard® CGMC magnetically driven end suction process pumps are sealless, single stage, close-coupled centrifugal pumps. All fluid contact parts are injection molded of solid, stand-alone polypropylene (PP) or polyvinylidene fluoride (PVDF). CGMC pumps eliminate corrosion associated with metal pumps, wicking and contamination associated with fiberglass pumps, and porosity/delamination associated with lined metal pumps.
Model Number |
Pump Size |
Suction Size |
Discharge Size |
Dimension X |
Dimension D |
Dimension P |
Diagram |
|---|---|---|---|---|---|---|---|
| CGMC 1-1/2 x 1 x 6 CGMC 1-1/2 x 1 x 6/Asset/chemgardCGMC_eng.png | Pump Size N/A 1.5 x 1 x 6 in | Suction Size N/A 1-1/2 in | Discharge Size N/A 1 in | Dimension X N/A 6-1/2 in | Dimension D N/A 5-1/4 in | Dimension P N/A 13-5/8 in |
Diagram
 |
| CGMC 3 x 2 x 6 CGMC 3 x 2 x 6/Asset/chemgardCGMC_eng.png | Pump Size N/A 3 x 2 x 6 in | Suction Size N/A 3 in | Discharge Size N/A 2 in | Dimension X N/A 8-1/4 in | Dimension D N/A 8-1/4 in | Dimension P N/A 16-1/16 in |
Diagram
|
| CGMC 3 x 2 x 8 CGMC 3 x 2 x 8/Asset/chemgardCGMC_eng.png | Pump Size N/A 3 x 2 x 8 in | Suction Size N/A 3 in | Discharge Size N/A 2 in | Dimension X N/A 9-1/2 in | Dimension D N/A 8-1/4 in | Dimension P N/A 16-1/16 in |
Diagram
|
| CGMC 4 x 3 x 10 CGMC 4 x 3 x 10/Asset/chemgardCGMC_eng.png | Pump Size N/A 4 x 3 x 10 in | Suction Size N/A 4 in | Discharge Size N/A 3 in | Dimension X N/A 11 in | Dimension D N/A 8-1/4 in | Dimension P N/A 16-1/16 in |
Diagram
|
