CHEM-GARD® CGC Horizontal Centrifugal Pumps

Thermoplastic Close-Coupled Centrifugal Pumps
transfer caustic/acidic chemicals and ultrapure fluids in restricted spaces

  • Flows to 640 gpm (145 m3/h)
  • Heads to 170 ft (52 m)
  • Temps to 275°F (135°C)
  • Construction: PP, PVC, PVDF

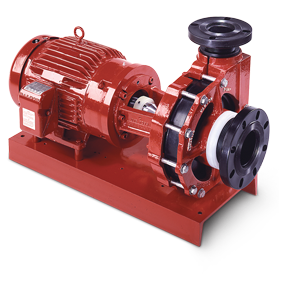

Vanton CHEM-GARD® CGC close-coupled, end suction thermoplastic centrifugal pumps are ideal for the dependable transfer of acidic, caustic and ultrapure chemicals when space is critical, and corrosion and contamination cannot be tolerated.

1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Model Number

Suction Size

Discharge Size

Dimension D

Dimension X

Dimension Y

Dimension Z

Dimension HA

Diagram

N/A 1 in25.4 mm N/A 1 in25.4 mm N/A 5-1/4 in133.35 mm N/A 6-7/8 in174.24 mm N/A 3-1/2 in88.90 mm N/A 2-1/2 in63.50 mm N/A 12 in304.80 mm

N/A 1-1/2 in38.1 mm N/A 1-1/2 in38.1 mm N/A 5-1/4 in133.35 mm N/A 8 in203.20 mm N/A 4-1/2 in114.30 mm N/A 3-9/32 in83.31 mm N/A 12 in304.80 mm

N/A 2 in50.8 mm N/A 1-1/2 in38.1 mm N/A 5-1/4 in133.35 mm N/A 8 in203.20 mm N/A 5 in127.00 mm N/A 3-9/32 in83.31 mm N/A 12 in304.80 mm

N/A 2 in50.8 mm N/A 1-1/2 in38.1 mm N/A 5-1/4 in133.35 mm N/A 7-15/16 in201.68 mm N/A 4-15/16 in125.48 mm N/A 3-9/32 in83.31 mm N/A 12 in304.80 mm

N/A 3 in76.2 mm N/A 2 in50.8 mm N/A 5-1/4 in133.35 mm N/A 10-3/4 in273.05 mm N/A 7 in177.80 mm N/A 4-3/16 in106.43 mm N/A 12 in304.80 mm

N/A 4 in101.6 mm N/A 3 in76.2 mm N/A 5-1/4 in133.35 mm N/A 10-3/4 in273.05 mm N/A 7 in177.80 mm N/A 4-3/16 in106.43 mm N/A 12 in304.80 mm
