ANSI CHEM-GARD® CGA Horizontal Centrifugal Pumps
CHEM-GARD® Horizontal Centrifugal Pumps
Thermoplastic Horizontal Centrifugal Pumps meet ANSI B73.1 standards
- Flows to 1150 gpm (261 m3/h)
- Heads to 185 ft (56 m)
- Temps to 275°F (135°C)
- Construction: PP, PVDF

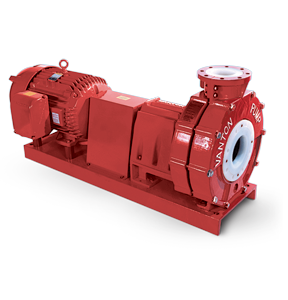

CHEM-GARD® CGA thermoplastic pumps with end suction, centerline discharge and back pullout construction, combine the award winning wide-open power frame of Vanton's CHEM-GARD® line of thermoplastic pumps with the standard dimensional characteristics embodied in ANSI specification B73.1. They are fully interchangeable with all other pumps manufactured to this specification without disturbing piping, base plate, foundation, driver or coupling. At the same time, they incorporate thermoplastic construction that will eliminate chemical attack and minimize abrasive wear.
Model Number |
Pump Size |
ANSI Designation |
Suction Size |
Discharge Size |
Dimension CP |
Dimension D |
Dimension X |
Dimension Y |
Dimension HA |
Dimension HT |
Dimension HB |

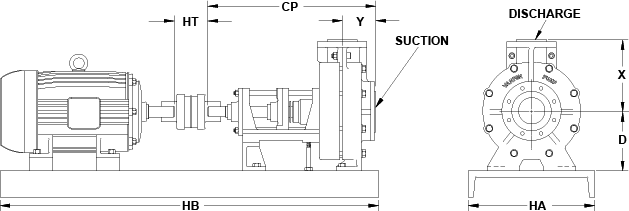

Diagram |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1028 1028/Asset/chemgardCGA_eng.png | Pump Size N/A 1.5 x 1 x 6 in | ANSI Designation N/A AA | Suction Size N/A 1-1/2 in | Discharge Size N/A 1 in | Dimension CP N/A 17-1/2 in | Dimension D N/A 5-1/4 in | Dimension X N/A 6-1/2 in | Dimension Y N/A 4 in | Dimension HA N/A 12 in | Dimension HT N/A 3-1/2 in | Dimension HB N/A 39 in |
Diagram
 |
| 1029 1029/Asset/chemgardCGA_eng.png | Pump Size N/A 3 x 2 x 6 in | ANSI Designation N/A A-10 | Suction Size N/A 3 in | Discharge Size N/A 2 in | Dimension CP N/A 23-1/2 in | Dimension D N/A 8-1/4 in | Dimension X N/A 8-1/4 in | Dimension Y N/A 4 in | Dimension HA N/A 15 in | Dimension HT N/A 3-1/2 in | Dimension HB N/A 52 in |
Diagram
|
| 1030 1030/Asset/chemgardCGA_eng.png | Pump Size N/A 3 x 2 x 8 in | ANSI Designation N/A A-60 | Suction Size N/A 3 in | Discharge Size N/A 2 in | Dimension CP N/A 23-1/2 in | Dimension D N/A 8-1/4 in | Dimension X N/A 9-1/2 in | Dimension Y N/A 4 in | Dimension HA N/A 15 in | Dimension HT N/A 3-1/2 in | Dimension HB N/A 52 in |
Diagram
|
| 1031 1031/Asset/chemgardCGA_eng.png | Pump Size N/A 4 x 3 x 8 in | ANSI Designation N/A A-70 | Suction Size N/A 4 in | Discharge Size N/A 3 in | Dimension CP N/A 23-1/2 in | Dimension D N/A 8-1/4 in | Dimension X N/A 11 in | Dimension Y N/A 4 in | Dimension HA N/A 18 in | Dimension HT N/A 3-1/2 in | Dimension HB N/A 58 in |
Diagram
|
| 1032 1032/Asset/chemgardCGA_eng.png | Pump Size N/A 4 x 3 x 9 in | ANSI Designation N/A A-70 | Suction Size N/A 4 in | Discharge Size N/A 3 in | Dimension CP N/A 23-1/2 in | Dimension D N/A 8-1/4 in | Dimension X N/A 11 in | Dimension Y N/A 4 in | Dimension HA N/A 18 in | Dimension HT N/A 3-1/2 in | Dimension HB N/A 58 in |
Diagram
|
| 1033 1033/Asset/chemgardCGA_eng.png | Pump Size N/A 4 x 3 x 10 in | ANSI Designation N/A A-70 | Suction Size N/A 4 in | Discharge Size N/A 3 in | Dimension CP N/A 23-1/2 in | Dimension D N/A 8-1/4 in | Dimension X N/A 11 in | Dimension Y N/A 4 in | Dimension HA N/A 18 in | Dimension HT N/A 3-1/2 in | Dimension HB N/A 58 in |
Diagram
|
| 1034 1034/Asset/chemgardCGA_eng.png | Pump Size N/A 4 x 3 x 13 in | ANSI Designation N/A A-40 | Suction Size N/A 4 in | Discharge Size N/A 3 in | Dimension CP N/A 23-1/2 in | Dimension D N/A 10 in | Dimension X N/A 12-1/2 in | Dimension Y N/A 4 in | Dimension HA N/A 18 in | Dimension HT N/A 3-1/2 in | Dimension HB N/A 58 in |
Diagram
|
| 1035 1035/Asset/chemgardCGA_eng.png | Pump Size N/A 6 x 4 x 13 in | ANSI Designation N/A A-80 | Suction Size N/A 6 in | Discharge Size N/A 4 in | Dimension CP N/A 23-1/2 in | Dimension D N/A 10 in | Dimension X N/A 13-1/2 in | Dimension Y N/A 4 in | Dimension HA N/A 18 in | Dimension HT N/A 3-1/2 in | Dimension HB N/A 58 in |
