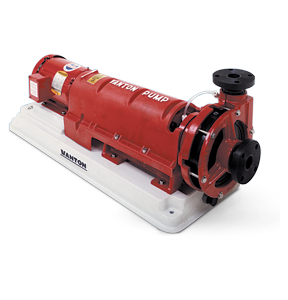

CHEM-GARD® CG Horizontal Centrifugal Pumps

Horizontal Centrifugal Pumps for all-purpose handling of corrosive,
abrasive and ultrapure liquids

  • Flows to 900 gpm (204 m3/h)
  • Heads to 185 ft (56 m)
  • Temps to 275°F (135°C)
  • Construction: PP, PVC, PVDF, ECTFE








Vanton CHEM-GARD® thermoplastic heavy-duty pumps are designed and constructed to maximize the unique properties of solid, homogeneous, chemically inert thermoplastics. Engineered to efficiently and safely handle corrosive, abrasive, and other aggressive fluids, Vanton pumps are also ideally suited to handle deionized and ultrapure water, pharmaceuticals, reagent grade chemicals and any fluid that must remain free from metallic contamination. Mechanical seals are reverse mounted to assure no metal-to-fluid contact.

1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Model Number

Pump Size

Dimension CP

Dimension D

Dimension X

Dimension Y

Dimension Z

Dimension HA

Dimension HT

Dimension HB

Diagram

N/A 1 x 1 in25.4 x 25.4 mm N/A 22-15/32 in570.71 mm N/A 5-1/4 in133.35 mm N/A 6-7/8 in174.63 mm N/A 3-1/2 in88.90 mm N/A 2-1/2 in63.50 mm N/A 12 in304.80 mm N/A 1/2 in12.70 mm N/A 35 in889.00 mm

N/A 1 1/2 x 1 1/2 in38.1 x 38.1 mm N/A 24-13/16 in630.24 mm N/A 5-1/4 in133.35 mm N/A 8 in203.20 mm N/A 5 in127.00 mm N/A 3-9/32 in83.34 mm N/A 12 in304.80 mm N/A 1/2 in12.70 mm N/A 35 in889.00 mm

N/A 2 x 15 in50.8 x 38.1 mm N/A 25-5/16 in642.94 mm N/A 5-1/4 in133.35 mm N/A 8 in203.20 mm N/A 5 in127.00 mm N/A 3-9/32 in83.34 mm N/A 12 in304.80 mm N/A 1/2 in12.70 mm N/A 35 in889.00 mm

N/A 2 x 15 in50.8 x 38.1 mm N/A 25-1/4 in133.35 mm N/A 5-1/4 in133.35 mm N/A 7-15/16 in201.61 mm N/A 4-15/16 in124.41 mm N/A 3-9/32 in83.34 mm N/A 12 in304.80 mm N/A 1/2 in12.70 mm N/A 35 in889.00 mm

N/A 3 x 2 in76.2 x 50.8 mm N/A 27-1/4 in692.15 mm N/A 5-1/4 in133.35 mm N/A 10-3/4 in273.05 mm N/A 7 in177.80 mm N/A 4-3/16 in106.36 mm N/A 12 in304.80 mm N/A 1/2 in12.70 mm N/A 41 in1041.40 mm

N/A 4 x 3 in101.6 x 76.2 mm N/A 27-1/4 in692.15 mm N/A 5-1/4 in133.35 mm N/A 10-3/4 in273.05 mm N/A 7 in177.80 mm N/A 4-3/16 in106.36 mm N/A 12 in304.80 mm N/A 1/2 in12.70 mm N/A 41 in1041.40 mm

N/A 6 x 4 in152.4 x 101.6 mm N/A 36-7/16 in925.51 mm N/A 10-1/4 in260.35 mm N/A 16 in406.40 mm N/A 12 in304.80 mm N/A Centerline Discharge N/A 15 in381.00 mm N/A 1 in25.40 mm N/A 60 in1524.00 mm
